Introduction

The Polymesh Portal is an interface for interacting with an account on the Polymesh Blockchain. It showcases some of the rich features available on Polymesh and is meticulously crafted with a responsive design that seamlessly adapts to different devices, including mobile phones and tablets.

With the Transfers Page, you can effortlessly view pending, affirmed, and failed settlement instructions, complete with full details, affirmation status of other parties, and errors if compliance rules or transfer restrictions are not satisfied. Settlement instructions for portfolios owned by another identity but with custody assigned to your active account will also be shown so they can be actioned by the appointed custodian.

The page supports the creation of settlement venues and both basic and advanced settlement instructions.

The Transfers Page

Transfers Card

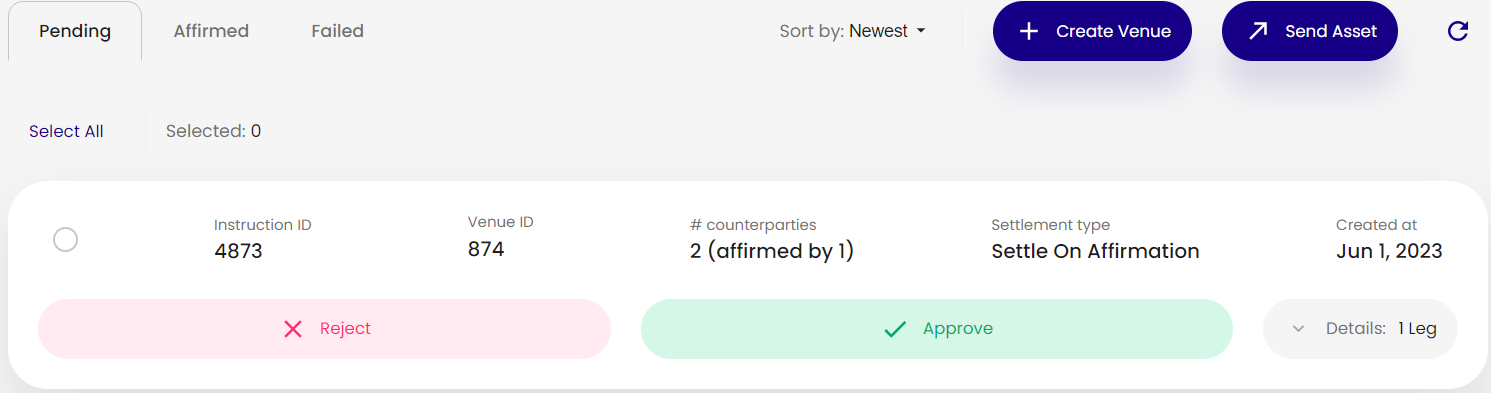

The Transfers card shows your pending, affirmed, or failed transactions. You can approve or reject transactions from here, or see more details of them.

Create Venue

Venues are logical groups of instructions and settlements. All settlement instructions are created within a venue in Polymesh. You can create and reuse a venue at any time.

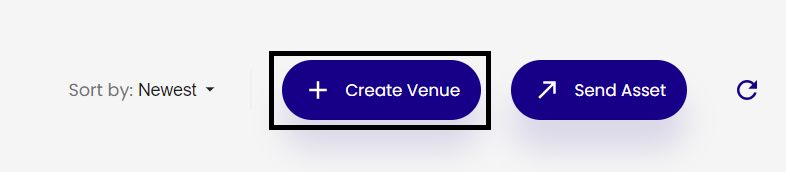

You can create a venue by clicking on the Create Venue button:

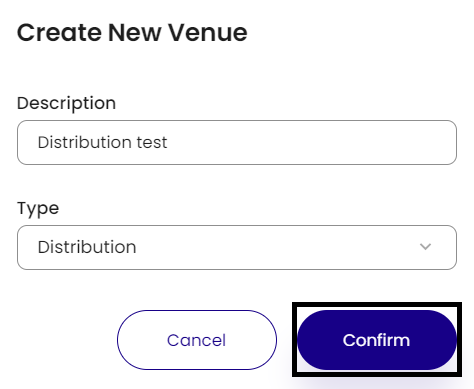

A popup window will appear, enter a description for the venue and select the type of it, then click on the Confirm button:

Send Asset

You can easily send any of your assets by clicking on the Send Asset button:

Basic settlement instructions

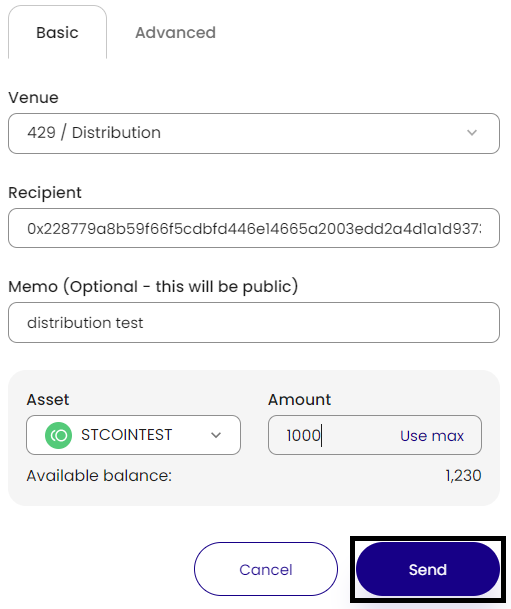

A popup window will appear to send an asset, fill in the details below:

• Venue: Select a venue from the dropdown menu.
• Recipient: Enter the recipient's DID. It must be a verified account that begins with 0x.
• Memo (Optional): You can enter a memo for the transfer if you like.
• Asset: Select an asset you would like to transfer from the dropdown menu.
• Amount: Enter the amount you would like to transfer.

Once all data are filled, click the Send button and sign the transaction with your wallet.

Advanced settlement instructions

Advanced instructions support multiple legs and multiple parties, allowing for atomic swaps of assets without the need for a trusted escrow or smart contract.

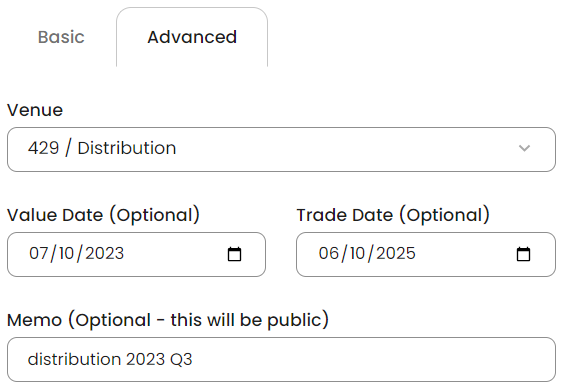

Click on the Advanced tab and fill in the details below:

• Venue: Select a venue from the dropdown menu.
• Value Date (Optional): Enter the date from which this instruction is valid. It should be greater than or equal to the trade date.
• Trade Date (Optional): Enter the date on which this transaction is executed.
• Memo (Optional): You can enter a memo for the transfer if you like.

• Sender: Enter the sender's DID then select the sender's portfolio from the dropdown.
• Receiver: Enter the receiver's DID then select the receiver's portfolio from the dropdown.
• Asset: Select the asset you would like to transfer.
• Amount: Enter the amount you would like to transfer.

Once all data are filled, click the Send button and sign the transaction with your wallet.
